SharinPix Image Transformation using a Flow (Admin-Oriented)

Overview

Sharinpix__TransformImage is an invocable Apex action that lets you apply SharinPix image transformations (such as resize, crop, or format) and automatically save the resulting image URL into a field on a record. Use it when you need a transformed version of an image stored in Salesforce for display, reporting, or integrations.

Input Parameters

Below are the inputs required when using the TransformImage invocable method in a Salesforce Flow.

Parameter	Description	Required/Optional
fieldApiName	The API name of the field in which the transformed URL should be saved.	Required
transformationJson	The transformations to apply in JSON format.	Required
imageId	The public ID of the image to be transformed.	Required
recordId	The ID of the record in which the transformed URL should be saved. If blank, it uses the SharinPix Image record itself.	Optional

Transformation JSON

The Transformation JSON input parameter accepts an array of objects. Each object represents one transformation. Since SharinPix leverages Cloudinary for image transformations, the JSON supports Cloudinary transformation parameters. For the full list of supported parameters and syntax, refer to the Cloudinary documentation on Image Transformations.

Typical uses of the Transformation JSON include:

• resizing or cropping the main image,

• adding an image overlay such as a watermark,

• adding a text overlay,

• adjusting opacity,

• changing the output format or quality,

• rotating or repositioning elements.

Common parameters include:

Parameter	Description	Example
width	Sets the width of the image in pixels or decimal.	{"width": 300}
height	Sets the height of the image.	{"height": 200}
crop	fill: Resizes to fill dimensions (may crop). fit: Fits inside dimensions (no cropping). scale: Stretches to exact dimensions. thumb: Optimized for face-detection thumbnails.	{"crop": "fill"}
gravity	Determines which part of the image to keep when cropping (north, center, face, etc.).	{"gravity": "face"}
quality	Adjusts compression level (1 to 100 or auto).	{"quality": "auto"}
format	Forces a specific file format (e.g., jpg, png, webp).	{"format": "jpg"}
overlay	Adds a watermark or text layer. Requires an image_id or text object.	{"overlay": "logo_id"}
opacity	Sets the transparency of the image or overlay (0-100).	{"opacity": 50}
angle	Rotates the image by a specified degree.	{"angle": 90}

Example JSON Strings:

• Simple Resize (Fill 200x200):

  [{"width": 200, "height": 200, "crop": "fill"}]

• Watermark + Resize:

  [{"width": 800, "crop": "scale"}, {"overlay": "my_logo", "gravity": "south_east", "x": 10, "y": 10, "opacity": 60}]

• Convert to JPG with Auto Quality:

  [{"format": "jpg", "quality": "auto"}]

Flow Configuration Guide

This section shows how to generate a transformed image URL in a Flow using the Transform Image action (sharinpix__TransformImage). The example uses a record-triggered flow that runs when a SharinPixImage__c record is created and updates the Description__c field on that record with the transformed image URL.

Step 1: Configure Record-Triggered Flow

1. Go to Setup > Flows > Click New Flow

2. Choose Start From Scratch and click Next

3. Choose Record-Triggered Flow and click Create

4. Set the following values:

Setting	Value
Object	SharinPix Image*
Trigger	A record is created
Set Entry Conditions	None
Optimize the Flow for	Actions and Related Records
Add Asynchronous Path	On

*Please note that the Object Setting can be configured as desired.

Alert:

Starting with the Salesforce Winter ’26 release, Apex Actions can no longer be executed directly in the Run Immediately path of a record-triggered flow. Instead, they must be placed in an asynchronous path, as the synchronous execution option is no longer supported.

For more details, please refer to the documentation here: Unable to save a flow with an Apex Action after the Salesforce Winter ’26 release – What should I do?

Step 2: Create New Resource to store watermark image

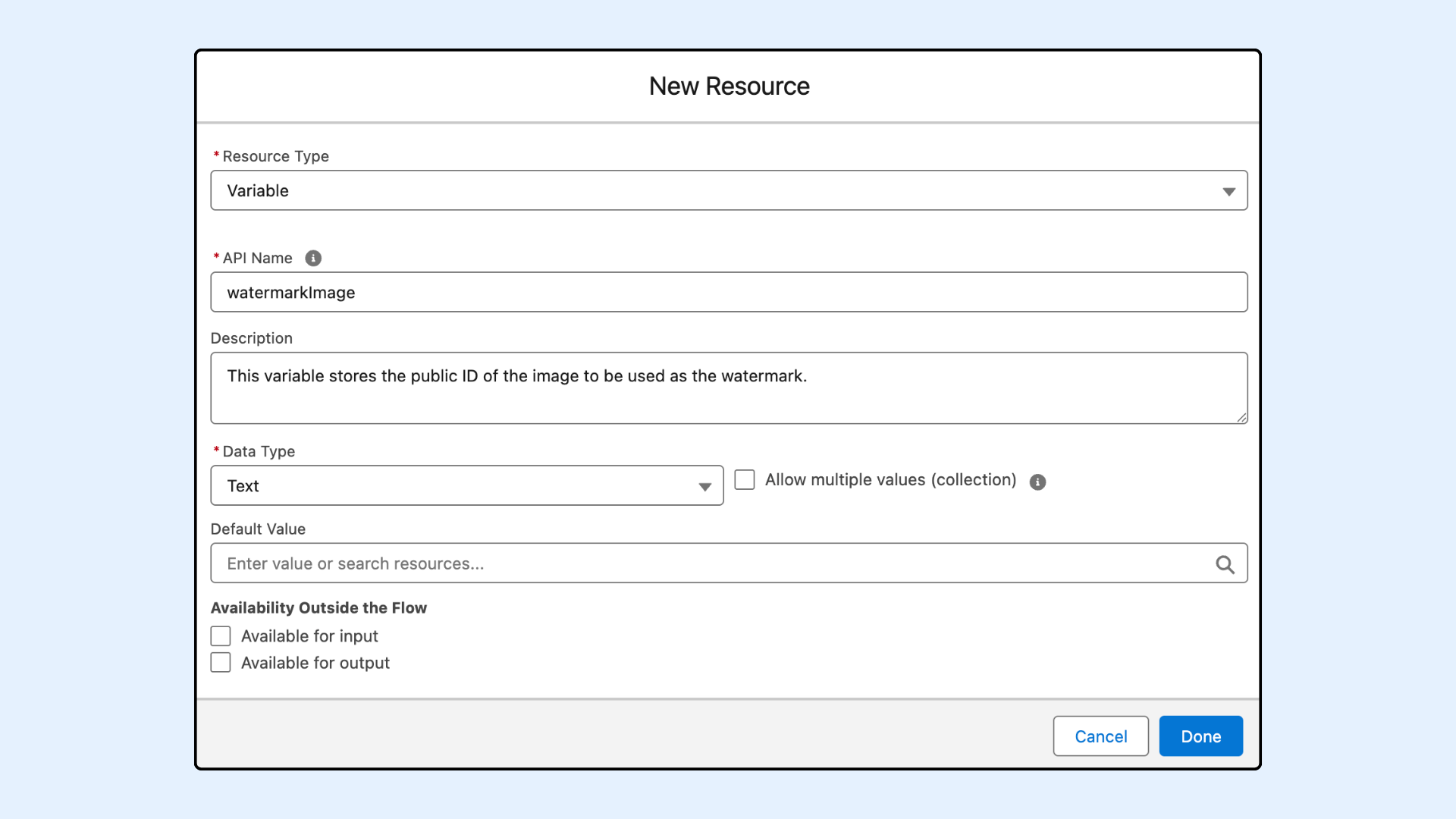

In this example, an image overlay will be added to the image being transformed. To make this possible, create a new Flow resource of type Variable to store the watermark image public ID.

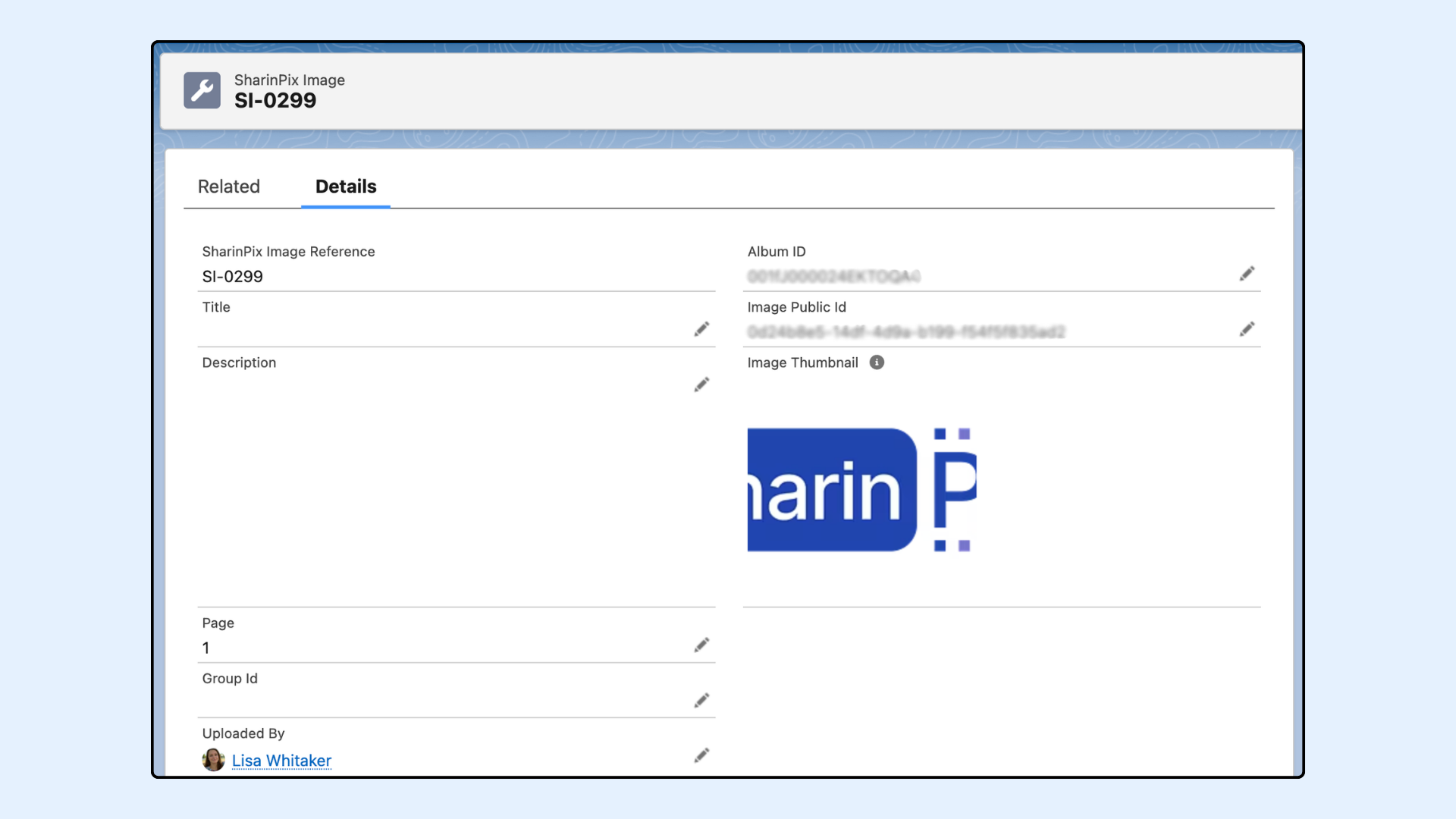

Below is the image that will be used as the watermark.

Next, add an Assignment element to the Flow to set the value of variable watermarkImage. Assign to watermarkImage the public ID of the image that will be used as the watermark.

Once assigned, the variable can be referenced in the Transformation JSON using Flow merge syntax: {!watermarkImage}

Step 3: Add the Apex Action to Transform Image

1. Add an Action element

2. Search for sharinpix__TransformImage

3. On the Action modal for sharinpix__TransformImage, populate the fields with the example values indicated below:

Field	Example Value
Field Api Name	sharinpix__Description__c
Image Public ID	Triggering SharinPixImage__c > ImagePublic Id
Transformation JSON	[ { "width": 1200, "height": 800, "crop": "fill", "gravity": "center" }, { "color": "#19354d", "overlay": "{!watermarkImage}", "width": 500, "gravity": "south" }, { "color": "#ffffff", "overlay": { "font_size": 65, "font_family": "Arial", "font_weight": "normal", "text": "Custom Text" }, "gravity": "center", "opacity": 30 } ]
Record ID	Blank*

The example JSON applies two transformations: the first adds an image overlay positioned at the bottom of the image, and the second adds a semi-transparent text overlay centered on the image.

*Note: For this example, you can leave Record ID blank, since the transformed image URL is stored directly on the SharinPixImage__c object itself.

To change the format of the transformed image to JPG, add {"format": "jpg"} at the end of the transformation JSON.

Example: [{ "color": "#ffffff", "overlay": { "font_size": 65, "font_family": "Arial", "font_weight": "normal", "text": "Custom Text" }, "gravity": "center", "opacity": 30 },{ "format": "jpg"}].

Note: Only the JPG format is supported.

Save the Flow and click Activate.

Demo

To test the flow, let's go to an Account record page, and add an image to the SharinPix album for that record. This will create a SharinPixImage__c record.

Then, open that record and verify that the Description__c field is populated with the URL of the transformed image, as configured in the flow above. Click the URL to view the transformed image.

Below, you can see a comparison between the original image and the image after the transformations have been applied.
